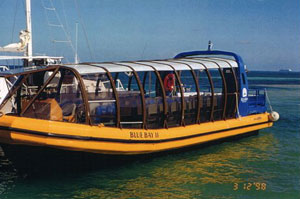

Explorathor P-45 for 60 passengers
A 45' (13.7m) lightweight , fast passengers vessel with a shallow draft and at same a vessel that could still handle rough waters at a respectable speed. This boat offer Seating for up to 60 passengers.
Contact us for pricing at
(418) 694-0909 or 888-EXPLORA
Basics specifications
| Explorathor Low Air draft, Bow's console 60 passengers. | |
| Boat Type | Passenger boat type Explorathor P-45 for 60 passengers. |
| Length | About 13,71 m o 45 ft overall |
| Width | About 4.20 m or 13.8 ft overall |
| Draught | Less than 1 meter. |
| Seats | 68 seats Hard PVC Coloured, folding type , seat with cushion RTMC standard |
| Power | Twin diesel engines Cummins QSB5.9 330hp |
| Cruising speed | about 20- knots |
| Propulsion | Twin Alpha Power Jet Model 356 |
| Steering | Hydraulic |
| Fuel Tank | 1 200 liters |
| Bilge pumps | 3 x Immersed bilge pump automatic and manual |
| Hull / Deck | Aluminum Fabrilite extruded; marine grade |
| Aluminum Tube | Aluminum Fabrilite extruded D shape cross section |
| Glass Top | Lexan, vertical sliding windows. Roof white coated. |
| Doors | Port & Starboard doors aft. |
| Wheelhouse | Simple console located at the Bow. Controls panel. seat, wiper |
| Instrumentation | Tachometer, gauges, warning lights, alarms , bilge pumps control |
| Electrical Equip. | Secured in locker, 2x batteries + 1x battery for VHF radio. 12 volts DC |
| Navigation Equip | Compass, Navigation Lights, VHF radio. |
| Communication | PA system , horn. RTMC standard |
Options NOT Included
Engines & propultion systems :
Perfect match with what about cruising speed and shallow draft needed.
We install any engines brand or selection.
Cummins diesel engines are our standard
Diesel engines : up to 600 hp each
- Inboard -Outboard diesel engines for stern drive system.
- Diesel engines on Alpha Power jet drives , no gear required.
- Diesel engines on Transmission gear, conventional shat and propeller.
- Gasoline outboard engines, 4 stroke, up to 300 hp each .
To deliver speed performace as requested :
The Explorathor boat desing allow simple , double or tripple engines installation.
Engine Room :
- Fire Insulation- A30 or A60
- Fire Fighting System: Fire extinguisher cylindars- fire ports; Co2 Fire fighting system. Fire detection system & alarms ;
- Engine room's sound insulation .
Others :
- Navigation equipments : Radar, GPS, others.
- Sound System: Advanced Hi-FI sound system or standard .
- Electrical equipments:110 Volts-220 volts on Inverters ; Generator; Shore power
- Safety & life saving equipments Life jackets .Life raft
