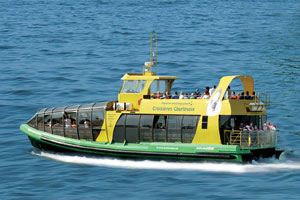

Explorathor P-70 up to 150 passengers

A 68' (20,73m) lightweight , fast passengers vessel with a shallow draft and at same a vessel that could still handle rough waters at a respectable speed. This boat offer Seating for up to 150 passengers, and can provide dinner cruise capacity for 100 guests on main deck and 125 guests covering secon deck.



Contact us for pricing at
(418) 694-0909 or 888-EXPLORA

Basics specifications

Structure Bureau Veritas Type appoval
Boat Type Passenger boat type Explorathor P-70 up to 150 passengers
Length 70 feet overall or 21.34 Meters
Width 19' 8'' overall or 6. Meters
Draught About -30 inches or 75 centimetres
Total Seats 125 seats, Hard PVC, coloured, folding type, cushion.
Bar-set RTMC standard.
Power 3 Xcummins diesel engines of 430 hp each
Propulsion 3 x Alpha Power Jet model 356
Speed About 20-22- knots with 100 passengers
Steering Hydraulic
Fuel Tank 2000 liters
Bilge pumps 9 Immersed bilge pumps (2 per compartment + 1for bulkhead.)
Hull / Deck Aluminium Fabrilite extruded ,marine grade
Second Deck Aft , open sky. RTMC Standards. marine grade
Aluminium Tube Aluminium Fabrilite extruded D shape . Marine grade
Glass Top Lexan, vertical sliding windows. Lexan, vertical sliding windows. The stern covered with Lexan opening windows.
Doors Port & Starboard doors at mid-ship.+ door at the bow.
Wheelhouse Raised, self draining cockpit, windscreen wiper, pilot seat
Instrumentation Tachometer, gauges, warning lights, bilge pumps controls.
Electrical Equip. 12 Volts DC, Secured in locker, 2x batteries + 1x battery for vhf radio.
Navigation Equip Navigation Lights, VHF radio - Radar 16 miles 2 KW. GPS.
Bathroom Two units, RTMC standard.

Options NOT Included

Engines & propultion systems :
Perfect match with  what about cruising speed and shallow draft needed.

We  install any engines brand or selection.
Cummins diesel engines  are  our standard



Diesel engines : up to 600 hp each

  • Inboard -Outboard  diesel engines for stern drive system.
  • Diesel engines on Alpha Power jet drives , no gear required.
  • Diesel engines on Transmission gear, conventional shat and  propeller.
  • Gasoline outboard  engines, 4 stroke, up to 300 hp each .



To  deliver speed performace as requested :
The Explorathor boat  desing  allow  simple , double  or tripple engines  installation.



Engine Room :

  1. Fire Insulation- A30 or A60
  2. Fire Fighting System: Fire extinguisher cylindars- fire ports; Co2 Fire fighting system. Fire detection system & alarms ;
  3. Engine room's sound insulation .
  4.

    Others :

  • Navigation equipments : Radar, GPS, others.
  • Sound System: Advanced  Hi-FI sound system or standard .
  • Electrical equipments:110 Volts-220 volts on Inverters  ; Generator; Shore power
  • Safety & life saving equipments Life jackets .Life raft
